System Components of Automated Guided Vehicles: Call The Donkey
The Call The Donkey automated guided vehicle (AGV) automates a wide range of intralogistical transport tasks - and does so with extreme flexibility! After almost 100 years of the sole dominance of the forklift truck, a transforming solution for intralogistical tasks is also offered for medium-sized and smaller companies.
With Call The Donkey, the smart solution from the DonkeyMotion modular system product range, this type of intralogistics can be integrated easily and quickly.
DONKEY-S-HL-1206-Laser-NavPrep-Lift-Joy
Product code 9067000
Base vehicle for the CALL THE DONKEY automated guided vehicle (AGV) system. The AGV automatically attaches the variable load modules and can thus carry out transport orders with different loads.
Payload 1 t, extremely compact AGV: 1180 x 590 x 240 mm (L x W x H).
Product code 9067000
Base vehicle for the CALL THE DONKEY automated guided vehicle (AGV) system. The AGV automatically attaches the variable load modules and can thus carry out transport orders with different loads.
Payload 1 t, extremely compact AGV: 1180 x 590 x 240 mm (L x W x H).
Charging Station
Product code 9068002
Charging station for charging and parking the load modules. The charging station contains the efficient charging technology for simultaneous charging of two load modules.
Product code 9068002
Charging station for charging and parking the load modules. The charging station contains the efficient charging technology for simultaneous charging of two load modules.

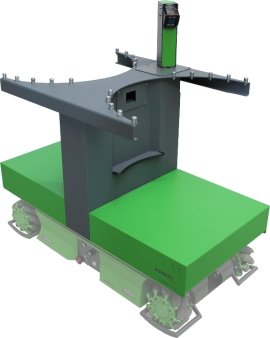

Load Module for Large Load Carriers (e.g., Euro Pallets)
Product code 9066001
Load module for transporting Euro pallets and other large load carriers in the typical format 1,200 mm x 800 mm. The load carriers resting in corresponding consoles are driven under by the driverless transport vehicle with the load module and lifted by raising the spindle lifting system.
Product code 9066001
Load module for transporting Euro pallets and other large load carriers in the typical format 1,200 mm x 800 mm. The load carriers resting in corresponding consoles are driven under by the driverless transport vehicle with the load module and lifted by raising the spindle lifting system.
Console for Large Load Carriers (e.g., Euro Pallets)
Product code 9066014
Console for the provision of Euro pallets or other large load carriers in the typical formats. The Euro pallets are thus made available at defined storage locations at the source of the transport and deposited in the console at the destination of the transport by the DONKEY-S-HL-1206-Laser-NavPrep-Lift-Joy automated guided vehicle. The load carriers can be removed and deposited from both sides.
Product code 9066014
Console for the provision of Euro pallets or other large load carriers in the typical formats. The Euro pallets are thus made available at defined storage locations at the source of the transport and deposited in the console at the destination of the transport by the DONKEY-S-HL-1206-Laser-NavPrep-Lift-Joy automated guided vehicle. The load carriers can be removed and deposited from both sides.

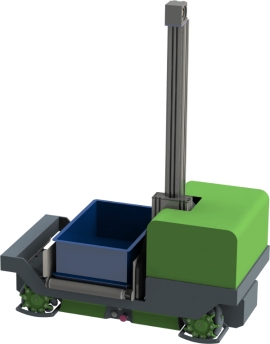

Load Module Lift for Small Load Carriers (600 x 400 mm)
Product code 9068001
Load module for transporting 600 x 400 mm small load carriers such as R-KLT, Euroboxes or wire baskets. Automatic material transfer to machines or conveyor systems with driven conveyor rollers. Transfer height from 250 mm up to 1,100 mm above the floor.
Product code 9068001
Load module for transporting 600 x 400 mm small load carriers such as R-KLT, Euroboxes or wire baskets. Automatic material transfer to machines or conveyor systems with driven conveyor rollers. Transfer height from 250 mm up to 1,100 mm above the floor.
Load Module Chip Bucket
Product code 9067001
Load module for carrying round 120-litre chip buckets. With this load module you fully automate the chip disposal of your machining operation.
Product code 9067001
Load module for carrying round 120-litre chip buckets. With this load module you fully automate the chip disposal of your machining operation.
Brackets for Chip Buckets
Product code 9067004
Brackets for placing chip buckets. The chip buckets can be placed directly under the chip ejector of cutting machines. The driverless transport vehicle DONKEY-S-HL-1206 drives under the bucket with the corresponding load module and transfers it to the chip disposal.
Product code 9067004
Brackets for placing chip buckets. The chip buckets can be placed directly under the chip ejector of cutting machines. The driverless transport vehicle DONKEY-S-HL-1206 drives under the bucket with the corresponding load module and transfers it to the chip disposal.
Gate Opener
Product code 9060168
The gate opener enables gates and other infrastructure components such as lifts to be operated by the CALL THE DONKEY master controller. The opener is connected to the control unit of the infrastructure component with galvanically isolated digital inputs and outputs. Communication with the master controller is via WLAN.
Product code 9060168
The gate opener enables gates and other infrastructure components such as lifts to be operated by the CALL THE DONKEY master controller. The opener is connected to the control unit of the infrastructure component with galvanically isolated digital inputs and outputs. Communication with the master controller is via WLAN.
