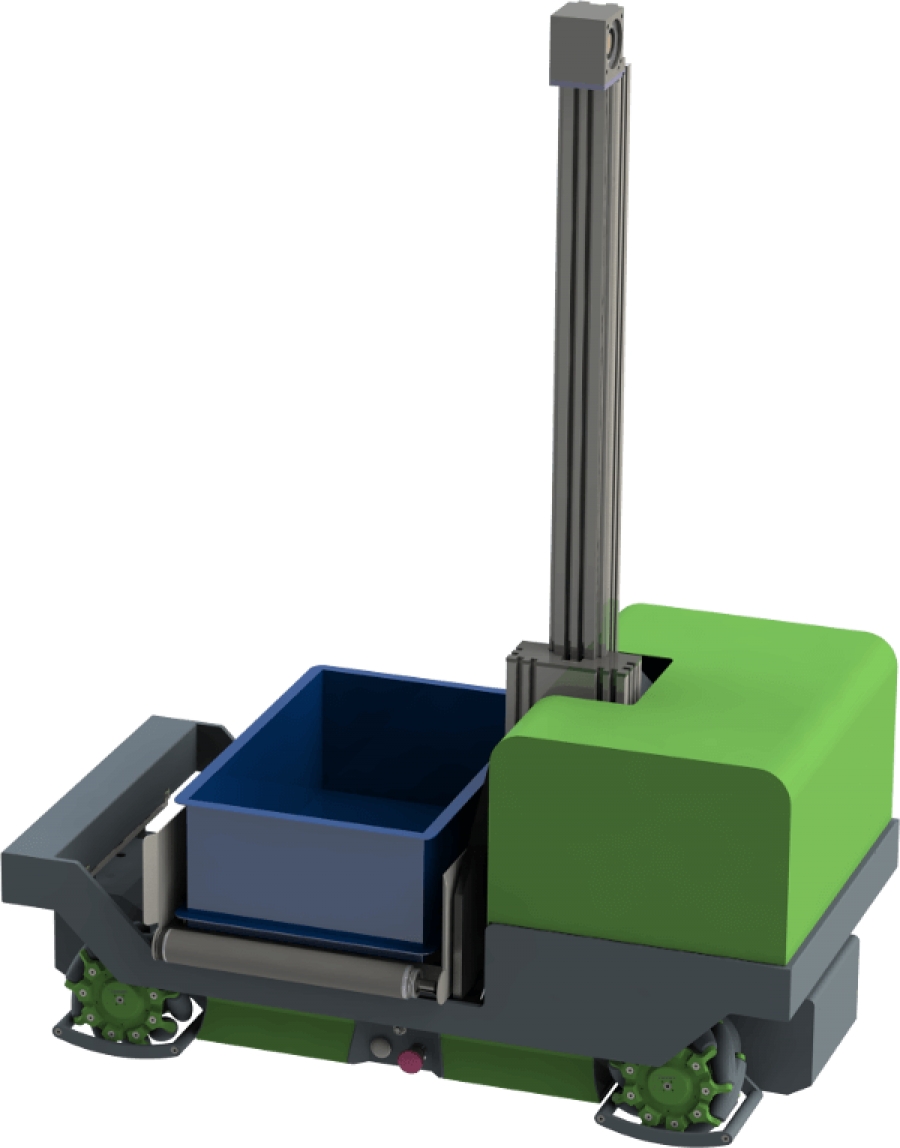

Load Module Lift for Small Load Carriers (600 x 400 mm)

Product code 9068001

Load module for transporting 600 x 400 mm small load carriers such as R-KLT, Euroboxes or wire baskets. Automatic material transfer to machines or conveyor systems with driven conveyor rollers. Transfer height from 250 mm up to 1,100 mm above the floor.




Load Module Lift for Small Load Carriers (600 x 400 mm)

This load module is very flexible to use in various existing production environments due to its lifting unit. In view of its very low transfer height of 250 mm, even flat conveyor belts or automatic stackers can be approached. The maximum height of 1,100 mm (more on request) enables transfer at an ergonomic height directly at the workplace.

The load module, like the other load modules, contains the Li-ion exchangeable battery that supplies the DONKEY-S-HL-1206-Laser-NavPrep-Lift-Joy with energy. Thus, by switching the load modules, it can continue to work 24/7 without any breaks in charging.

For adaptations of our load modules to your tasks, please contact our technical support.



Technical Data

  • 1.200 x 600 x 1.450 mm (L x W x H)
  • Holder for transporting small load carriers up to 600 x 400 mm base area
  • Driven conveyor belt
  • 80 kg payload
  • 2,3 kWh battery capacity
