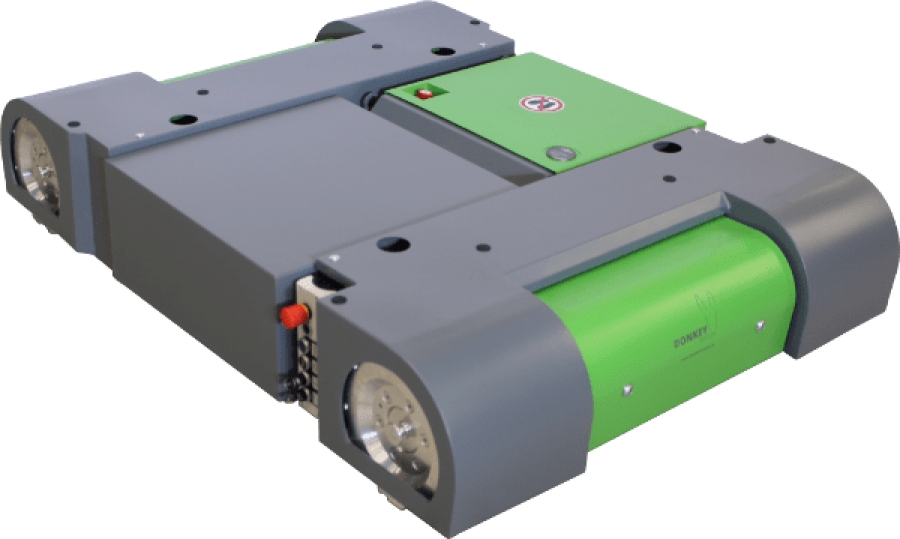

The special chassis design ensures constant ground contact and even load distribution, even on uneven surfaces.
Of course, the vehicle is equipped with the DONKEYmotion MecanumDriveM which ensures the outstanding low-vibration rolling behaviour.
The interchangeable battery trough fitted as standard enables uninterrupted use in shift operation without breaks for charging.
Length and width can be customised on request.

Typical applications

• Moving heavy assembly platforms in cycle assembly
• Moving work equipment, e.g. in aircraft maintenance
• Moving heavy scissor lift tables
• Carrying large robots and other loads

Technical Data

• Dimensions: 1600 mm x 1200 mm x 330 mm (L x W x H)
• 2.25 t payload with load-bearing application
• 8.5 t payload for towing application (load is mounted on separate rollers)
• Battery capacity: 6,000 Wh
• Lead-gel battery: robust and low-maintenance with maximum service life
• Vehicle mass including batteries: 550 kg
• Control with radio remote control ControlPanelWireless

Options

• Lifting system (for lifting or pressing)

  • 70 mm stroke
  • 28 kN
  • Freely positionable
  • Manual override, emergency stop
• Charger in three variants

  • OnBoard charging system (industrial truck can be connected to CEE 16 socket for charging)
  • Charger (balanced and fast charging)
  • EasyCharger
• Safety Laser Scanner
• DONKEYmotion Eye: track guidance system
• Interface to customised attachments or superstructures
