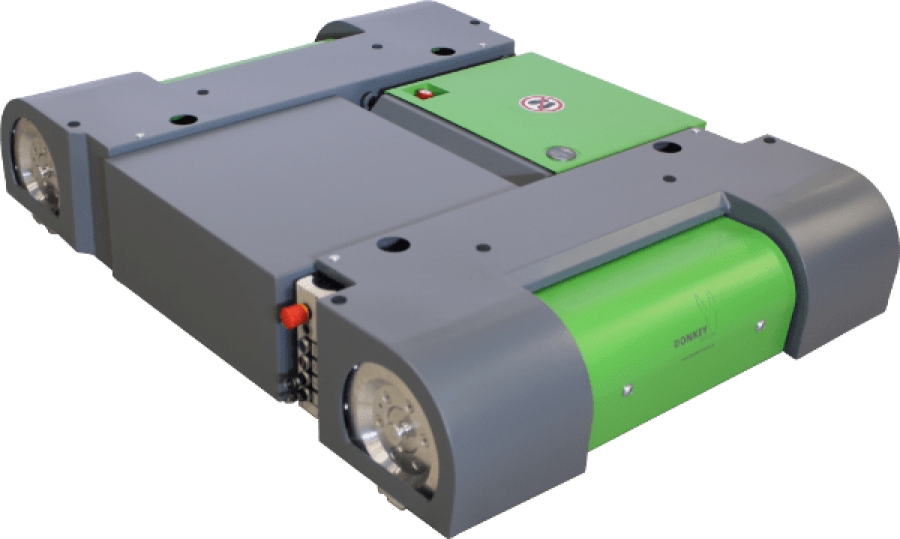

The special chassis design ensures constant ground contact and even load distribution even on uneven surfaces.
The vehicle is equipped with the DONKEYmotion MecanumDriveM-HL, which ensures the outstandingly low-vibration rolling behaviour.
The interchangeable battery trough fitted as standard enables uninterrupted use in shift operation without breaks for charging.
Length and width can be customised on request.

Typical Applications

• Moving heavy assembly platforms in cycle assembly
• Moving work equipment, e.g. in aircraft maintenance
• Moving heavy scissor lift tables
• Carrying large articulated robots and other loads

Technical Data

• 1,600 x 1,200 x 330 mm (L x W x H)
• 2.65 t payload with load-bearing application
• over 10 t payload with towing application (please contact us to design the vehicle for your application)
• Battery capacity: 6,000 Wh
• Lead-gel battery, robust and low-maintenance with maximum service life
• Vehicle mass including batteries: 600 kg
• Control with radio remote control ControlPanelWireless

Optionen

• Lifting system (for lifting or pressing)

  • 70 mm stroke
  • 28 kN
  • Freely positionable
  • Manual override, emergency stop
• Charger in three variants

  • OnBoard charging system (industrial truck can be connected to CEE 16 socket for charging)
  • Charger (balanced and fast charging)
  • EasyCharger
• Safety Laser Scanner
• DONKEYmotion Eye: track guidance system
• Interface to customised attachments or superstructures
