MecanumAxleS-HL (maximum tread width 700 mm)

Tread width: 500 mm / 600 mm

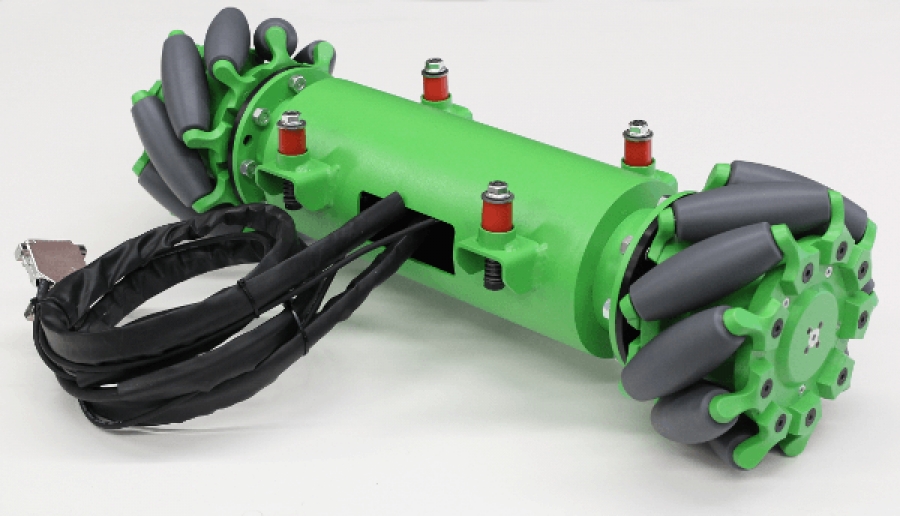

Entire axle including two pieces of MecanumDriveS-HL and damped axle suspension. Axles are easily mounted on frame constructions, it is child's play to assemble your Mecanum vehicle!

The suspension group is dampening the roller movement vibrations and compensates for floor irregularities.





View Demo

Datenblatt
MecanumAxleS-HL (maximum tread width 700 mm)



Product code 9060110 /tread width: 500 mm / outer dimension: 598 mm)

Product code 9060114 (tread width: 600 mm / outer dimension: 698 mm)




Technical Data:

  • Payload: 5.500 N
  • Tread width can be customised
  • Masses depend on tread width: 25,2 kg @ 500 mm, 26,2 kg @ 600 mm





Other technical data of the MecanumDriveS-HL used in these axles, are summarised here:

MecanumDriveS-HL (40-92-R)

MecanumDriveS-HL (40-92-L)







More in this category: « MecanumAxleS-HL (minimum tread width 700 mm) Foot Guard »

MecanumAxleS-HL (maximum tread width 700 mm)
